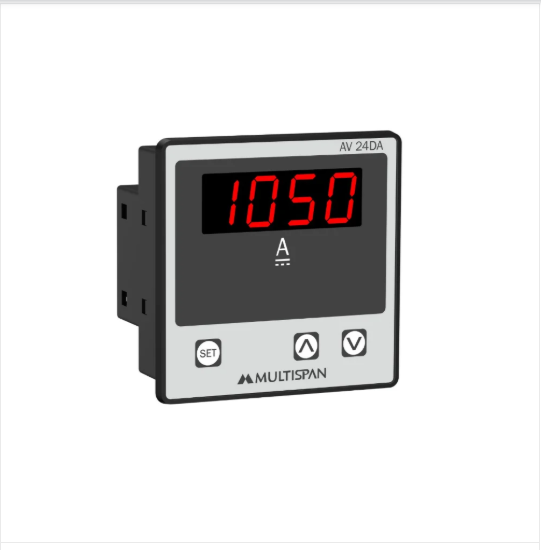

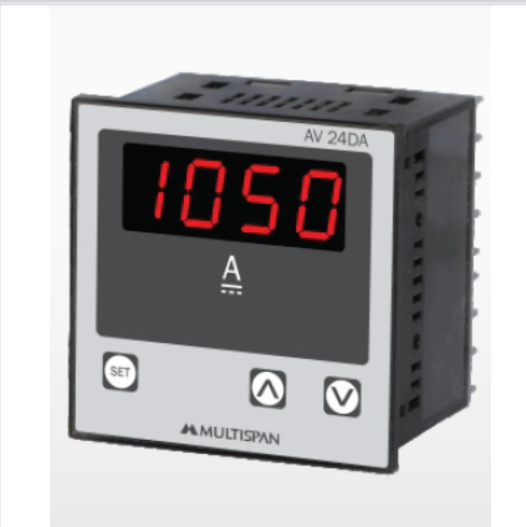

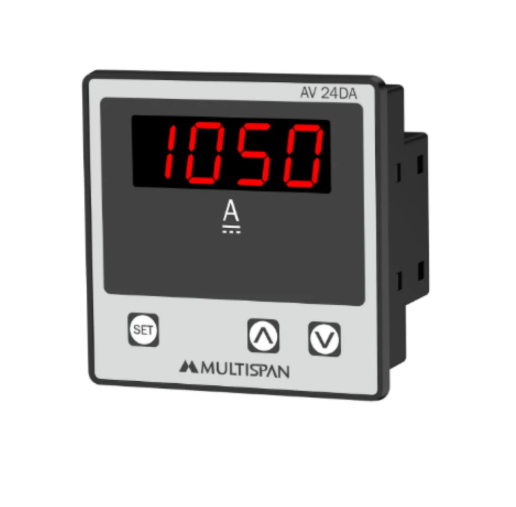

AV 24DA DC Ampere Meter

Name: AV 24DA DC Ampere Meter
Brand: SYSTEM CONTROLS
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AV 24DA DC Ampere Meter Specification

Usage & Applications
Electrical Panels, Control Panels

Pressure
Atmospheric

Accuracy
1.5% FSD

Resistant Feature
Shock Resistant

Product Type
Dc Ampere Meter

Measuring Voltage Range
0-100V DC

Operating Temperature
-10C to +55C

Frequency (MHz)
DC (0 Hz)

Insulation Box
Yes

Protection System
IP-50

Size
Standard

Color
Black/White front

Dimension (L*W*H)
96mm x 96mm x 60mm

Weight
Approx. 350g

Warranty
1 year

Display Type
LED DISPLAY

Material
MS

AV 24DA DC Ampere Meter Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About AV 24DA DC Ampere Meter

Display

4 Digit 7 seg 0.56, RED LED Display

Power Supply

Standard
230V AC, 50Hz

Consumption
Up to 4VA

Environmental

Operating Temperature
0 to 55C

Storage Temperature
0 to 70C

Humidity
95% RH Non-condensing

Protection (As Per Request)
IP 65 (Front Side)

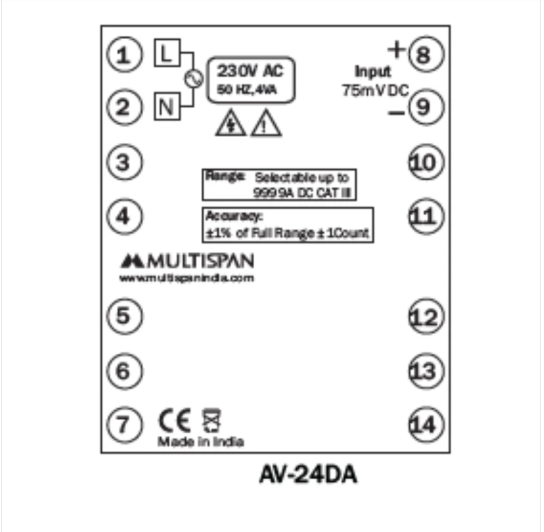

Input

Ampere (DC)
0 to 9999 Ampere DC Through 75mV DC External Shunt

Burden
< 0.2VA

Accurate Current Measurement

Designed for both standard (0-10A DC) and custom ranges, the AV 24DA DC Ampere Meter delivers reliable readings with 1.5% FSD accuracy. Its moving coil pointer and LED display ensure clear and immediate results, making it ideal for industrial and commercial electrical panel use.

Durable and Safe Construction

With a shock-resistant MS body, transparent polycarbonate front cover, and IP-50 protection, this meter offers robust safety for demanding installations. The panel-mount design and screw terminals facilitate easy, secure connection while the insulation box further enhances operational safety.

User-Friendly Operation

Self-powered via the measuring circuit, the AV 24DA DC Ampere Meter eliminates the need for external power sources. Its quick response time (<2 seconds) and clear LED display simplify the measurement process, allowing technicians to monitor current efficiently in real time.

FAQs of AV 24DA DC Ampere Meter:

Q: How is the AV 24DA DC Ampere Meter installed in an electrical panel?

A: The meter is designed for panel mounting using standard panel terminals and screw-type connections, making installation straightforward for electrical technicians or maintenance staff.

Q: What is the process for measuring current with this ampere meter?

A: Simply connect the device to the desired measuring circuit using the screw-type terminals. The meter self-powers via the circuit and displays the current accurately on its LED display within two seconds.

Q: Where can this meter be used most effectively?

A: It is optimized for use in electrical and control panels, especially in industrial, commercial, and utility applications where monitoring DC current is essential.

Q: What benefits does the LED display provide over analog alternatives?

A: The LED display offers clear, easily readable measurements, even in low-light conditions, reducing the risk of misreading and improving operational safety and precision.

Q: When should custom current measurement ranges be considered?

A: Custom ranges are beneficial when your application requires monitoring currents outside the standard 010A DC range, ensuring the meter adapts to unique system requirements.

Q: How does the shock-resistant feature enhance meter reliability?

A: The MS construction and shock-resistant design help the meter withstand physical impacts and vibrations, making it durable for challenging environments and reducing downtime due to equipment failure.
