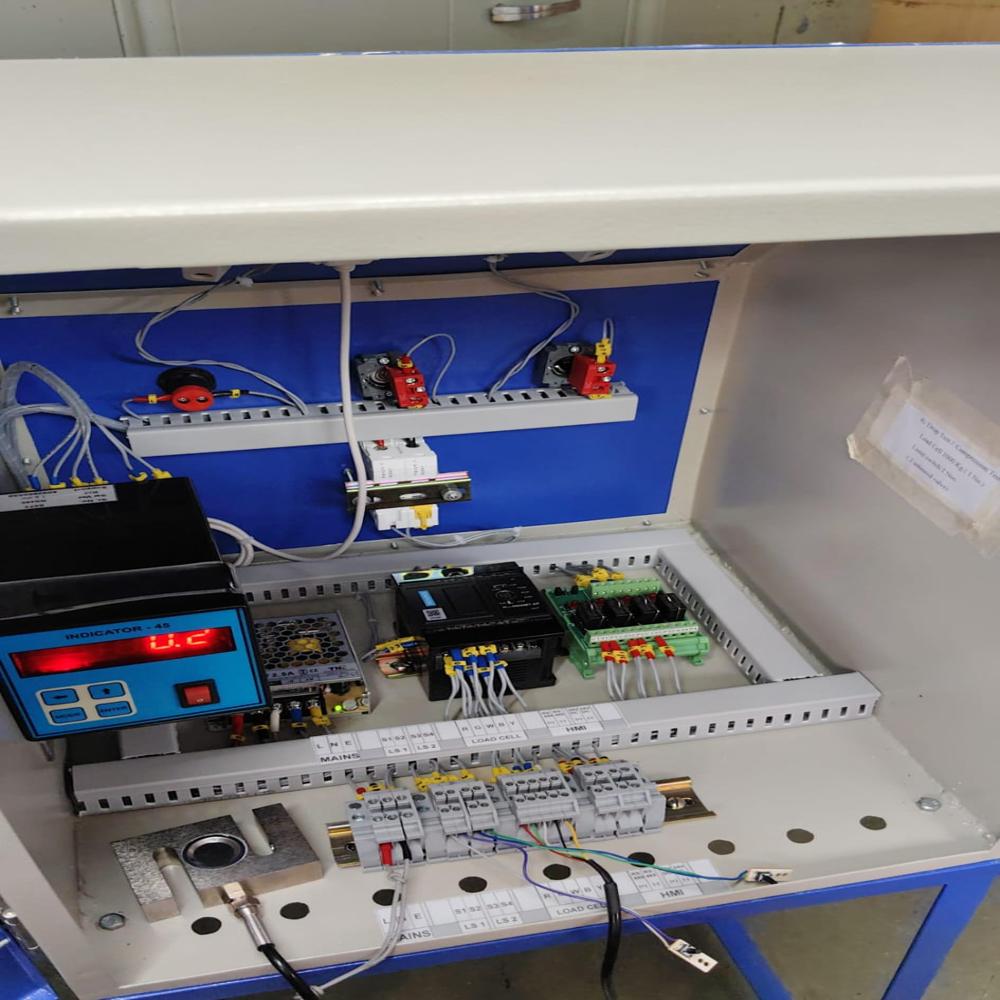

HMI Based Drop Test and Compression Test Panel

Name: HMI Based Drop Test and Compression Test Panel
Brand: SYSTEM CONTROLS
Price: 53000.0 INR
Availability: InStock

Price 53000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HMI Based Drop Test and Compression Test Panel Specification

Protection Level
IP54

Rated Voltage
220V AC

Phase
Single Phase

Humidity
Up to 90% RH, Non-condensing

Input Current
< 2A

Mounting Type
Floor Standing

Output Voltage
24V DC (Control Circuit)

Frequency
50 Hz

Operating Temperature
10C to 40C

Efficiency
>90%

Main Material
Mild Steel with Powder Coating

Processing Type
Automatic

Condition
New

Function
Drop Test and Compression Test Operation

Product Type
HMI Panel

Application
Drop and Compression Testing for Packaging, Materials, Electronics

Dimension (L*W*H)
600 x 500 x 1800 mm

Power Mode
Electric

Voltage
230V Volt (v)

Power Consumption
Approx. 100W

Battery Life
N/A (Mains Powered)

Accessories
Instruction Manual, Power Cord, Test Fixtures

Drop Height Range
Up to 1.2 meters (adjustable)

Frame Construction
Rigid MS Welded Frame

Sensors
Precision Load Cell and Height Encoder

Test Modes
Single Cycle, Repeat Cycle, Programmed Cycle

Compliance
ISO 2248, ASTM D642 Standards

Connectivity
USB Port, Ethernet (optional)

Display Type
7-inch HMI Touchscreen

Control System
PLC Based

User Interface
Menu Driven, Multi-Language Support

Sample Size Capacity
Maximum 500 x 500 mm

Safety Interlocks
Emergency Stop, Door Safety Switch

Weight
Approx. 200 kg

Test Capacity - Compression
Up to 5000 N

Data Logging
USB and Internal Memory Storage

Compression Platen Size
300 x 300 mm

Finish
Powder Coated

HMI Based Drop Test and Compression Test Panel Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About HMI Based Drop Test and Compression Test Panel

HMI-Based Drop Test and Compression Test Panel for Chair Testing

This control panel is designed to perform two essential chair quality tests:

Drop Test Verifies the chairs ability to withstand impact by dropping a weighted seat or loading assembly from a specified height.
Compression Test Applies a controlled static load to the chair seat or backrest for a preset time.

The panel uses a PLC and HMI to automate test sequences, display live data, and record results.

Precision Testing Made Simple

The panel's intuitive 7-inch HMI touchscreen interface allows users to set up and operate drop and compression tests efficiently. From adjusting drop height to selecting test cycles, the menu-driven navigation minimizes manual intervention and ensures consistent, accurate results every time.

Advanced Safety and Compliance

Incorporating features like emergency stop and door safety switches, this panel prioritizes operator protection. Complying with recognized standards (ISO 2248, ASTM D642), it assures both operational safety and the reliability of test outcomes across various industries.

Robust Construction and Versatility

With its rigid mild steel welded frame and powder-coated finish, the panel is engineered to endure demanding environments. Flexible testing modes, automatic data logging, and broad sample compatibility make it suitable for routine quality checks and advanced research work alike.

FAQ's of HMI Based Drop Test and Compression Test Panel:

Q: How does the drop test and compression test panel operate during typical testing?

A: The system utilizes a PLC-based control system and a 7-inch HMI touchscreen for easy selection of drop heights (up to 1.2 m) and compression loads (up to 5000 N). Test modes such as single, repeat, or programmed cycles can be configured via the menu-driven interface for automated operation.

Q: What materials or samples can be tested with this panel?

A: The panel accommodates a wide variety of materials and products, including packaging, electronics, and construction materials. Its platen and maximum sample size capacity (up to 500 x 500 mm) make it suitable for testing both small and large items under standardized methods.

Q: When should I use the drop test versus the compression test?

A: Drop tests are ideal for assessing a sample's durability against sudden impacts or accidental drops, often used for packaging or electronics. Compression tests measure a sample's resistance to crushing forces, valuable for packaging strength and structural evaluation.

Q: Where should this test panel be installed for optimal performance?

A: Install the panel on a solid floor within a controlled environment, maintaining an ambient temperature between 10C to 40C and humidity below 90% RH (non-condensing). The floor-standing design and IP54 protection ensure stability and protection in most workshop or laboratory settings.

Q: What is the process for logging and exporting test data?

A: Test data is automatically logged to both internal memory and an external USB drive. For further analysis, users can export datasets via the USB port, and Ethernet connectivity (optional) allows seamless integration into laboratory information systems.

Q: How does this panel benefit my testing workflow?

A: It streamlines test procedures with automated settings, rapid sample changeover, and reliable result documentation, increasing laboratory efficiency. Multi-language support and compliance with global standards also make adopting the system straightforward for diverse user groups.
