HMI Based Back Strength Test Panel

Name: HMI Based Back Strength Test Panel
Brand: SYSTEM CONTROLS
Price: 53000.0 INR
Availability: InStock

Price 53000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HMI Based Back Strength Test Panel Specification

Protection Level
IP54

Operating Temperature
0C to 50C

Frequency
50 Hz

Mounting Type
Panel

Rated Voltage
230 V AC

Humidity
Up to 90% RH, non-condensing

Efficiency
>90%

Input Current
Max 2 A

Output Voltage
24 V DC (control supply)

Phase
Single

Main Material
Powder coated mild steel body

Processing Type
Automatic using programmable logic controller (PLC) and HMI

Condition
New

Function
Measuring and testing of back strength in materials/components

Application
CHAIR TESTING

Dimension (L*W*H)
480 x 350 x 200 mm

Power Mode
Electric

Voltage
230 Volt (v)

Power Consumption
30 W

Battery Life
N/A (AC powered)

Accessories
User manual, wall mounting kit, wiring cables

Display Type
7-inch TFT HMI touchscreen

Safety Features
Emergency stop, overload protection, and electrical earth terminal

Data Output
USB and RS485 communication ports

Control System
PLC controlled with user-friendly HMI interface

Operation Mode
Manual & automatic test cycle selection

Test Capacity
Up to 500 kg

Data Storage
Onboard memory for 999 test results

Enclosure Color
Grey/white (standard), customizable on request

Calibration
Provided with standard calibration certificate

HMI Based Back Strength Test Panel Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About HMI Based Back Strength Test Panel

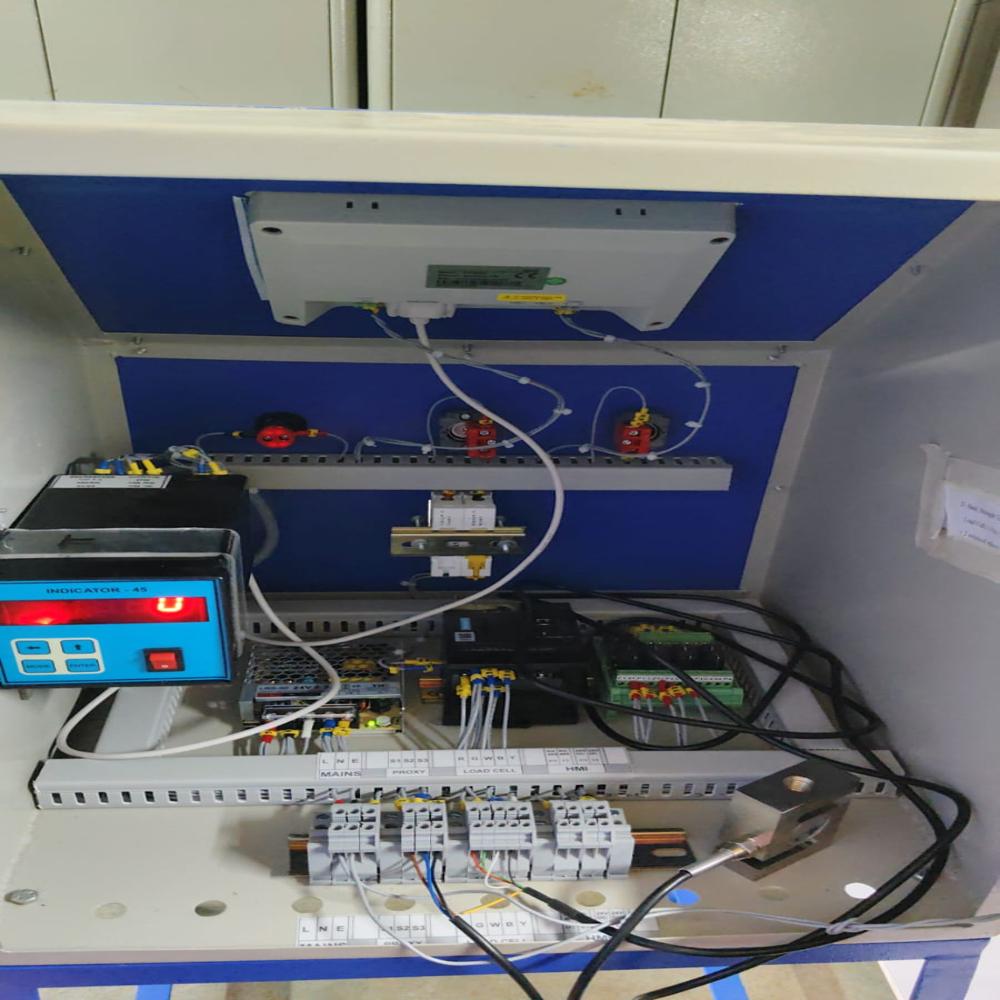

Chair Back Strength Tester Panel Working Description

A Chair Back Strength Tester is used to test the strength and durability of a chair backrest by applying a specified force repeatedly or for a fixed duration, as defined in standards such as ANSI/BIFMA X5.1. The machine typically uses a PLC, HMI, load cell, servo motor or pneumatic cylinder, and safety sensors to automate the test process.

Main Functions of the Control Panel

The HMI/Panel usually includes the following settings and indicators:

Test Parameters

Set Load (N or kgf) Required force to apply to the chair back.
Hold Time (sec) Duration to hold the force during static testing.
Cycle Count Number of cycles for durability testing.
Test Speed Cycles per minute.
Stroke Length Forward movement distance of actuator.
Return Delay Delay before returning to home position.

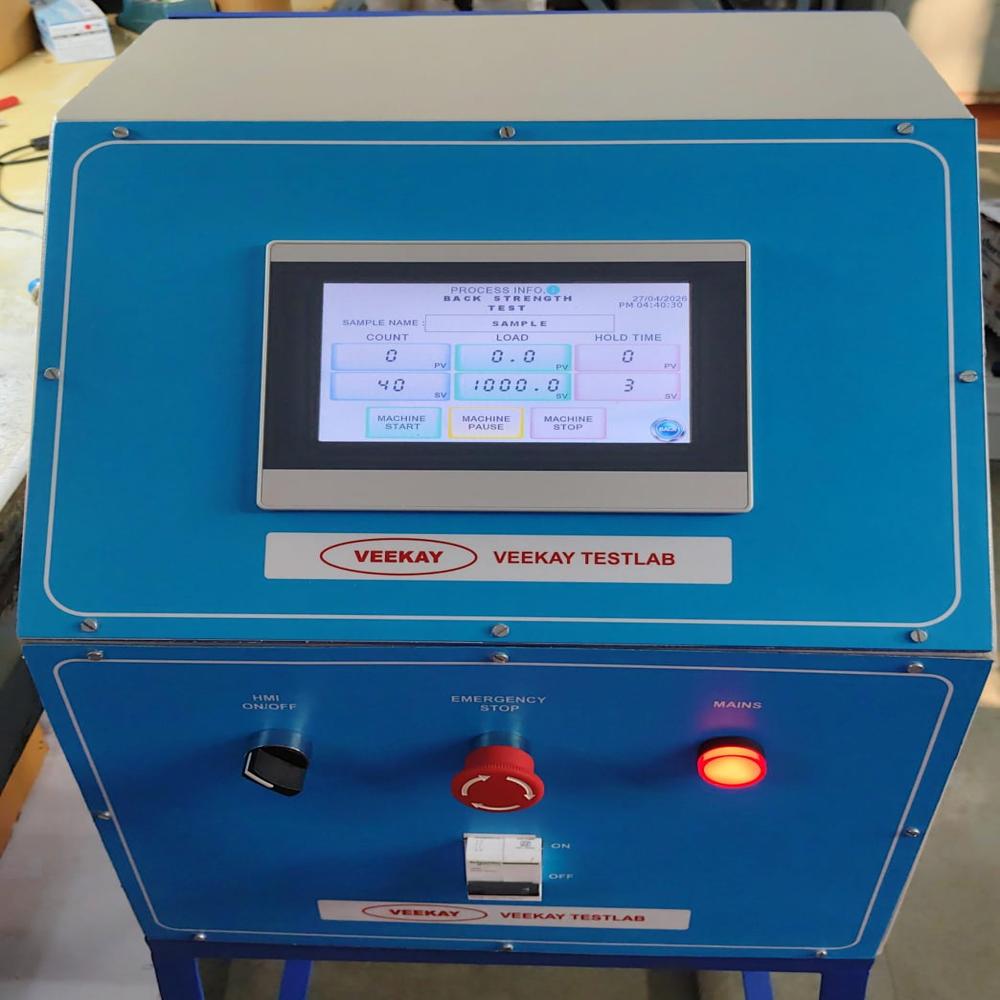

Intuitive Touchscreen Interface

The 7-inch TFT HMI touchscreen provides a user-friendly experience, simplifying test setup, cycle selection, and result monitoring. Both novice and expert users can navigate the menus with ease, ensuring consistent and efficient operation.

Advanced Safety and Reliability

Equipped with emergency stop, overload protection, and electrical earth terminal, this test panel prioritizes operator safety and the longevity of your equipment. Its robust, powder-coated mild steel enclosure and IP54 protection make it suitable for rigorous industrial settings.

Efficient Data Handling

Easily export detailed test data via USB or RS485 ports. Onboard memory accommodates up to 999 results, allowing for extensive records and streamlined quality audits. The included calibration certificate ensures reliable, traceable results.

FAQ's of HMI Based Back Strength Test Panel:

Q: How does the HMI Based Back Strength Test Panel operate?

A: The panel is operated via a 7-inch touchscreen HMI, allowing users to select between manual and automatic test cycles. The PLC-based control system manages testing procedures precisely, with real-time data displayed throughout the process.

Q: What is the primary application of this test panel?

A: This panel is specifically designed for chair testing, accurately measuring the back strength of materials and components to meet industry standards.

Q: When should calibration be performed on the test panel?

A: Each unit is delivered with a standard calibration certificate. However, it is recommended to recalibrate annually or according to your quality system to maintain testing accuracy.

Q: Where can the panel be installed?

A: With panel mounting design and an IP54-rated enclosure, the unit is suitable for laboratory, workshop, or production floor installations where back strength testing is required.

Q: What data output options are available?

A: Test results can be exported through USB or RS485 ports. Data is also stored in the system's onboard memory, accommodating up to 999 recent test results for convenient retrieval.

Q: How does the device ensure safety during operation?

A: Features such as an emergency stop button, overload protection, and an earth terminal protect both the operator and equipment from hazards or accidental damage.

Q: What are the benefits of using this back strength test panel?

A: It offers precise, repeatable testing, efficient data management, comprehensive safety features, and a user-friendly interface. These benefits lead to accurate quality assessments and improved workflow in material and product evaluation.
