HMI Based Jacuzzi Control Panel

About HMI Based Jacuzzi Control Panel

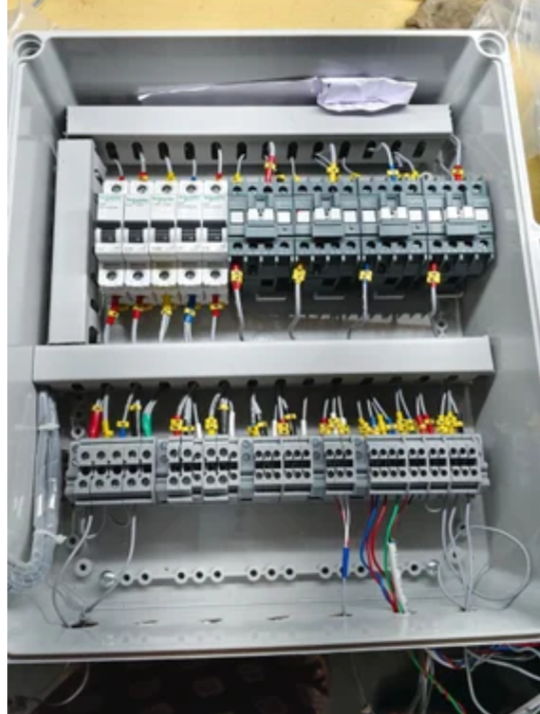

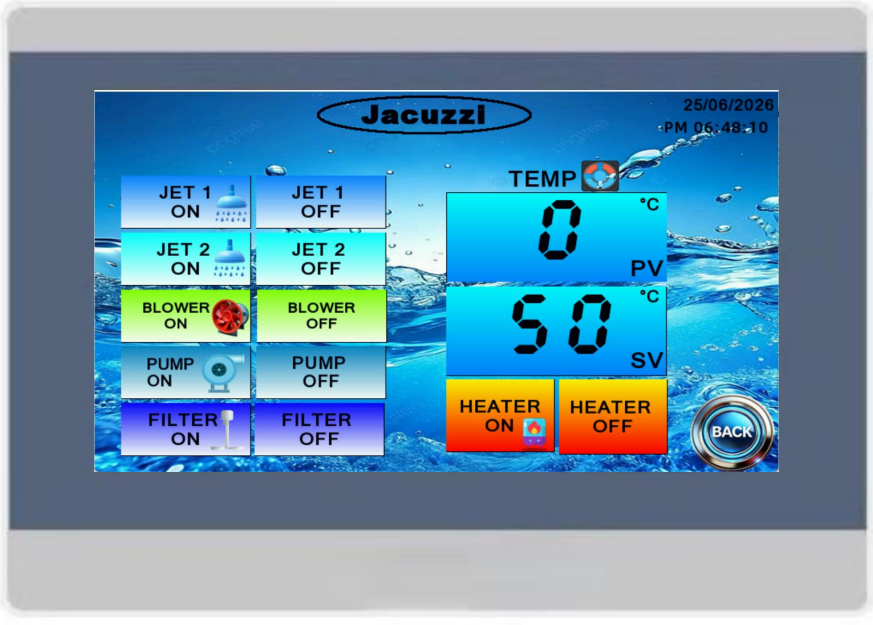

An HMI-based Jacuzzi Control Panel is a touchscreen-operated system used to control and monitor all Jacuzzi (spa bath) functions from a single interface. The HMI acts as the user interface, while a PLC or controller manages the pumps, heaters, blowers, lights, and safety interlocks.

• Jacuzzi ON/OFF
• System status indication

• Display actual water temperature
• Set desired temperature
• Automatic heater control to maintain setpoint

• Start/Stop massage jets
• Multiple speed selection (if VFD used)

• ON/OFF control of air bubbles
• Adjustable blower intensity (optional)

• Underwater LED ON/OFF
• Color selection and brightness adjustment (if RGB lighting available)

• Auto shutdown after preset time
• Energy-saving operation

• Low water level protection
• Heater interlock
• Over-temperature protection
• Pump overload alarm

• Heater fault
• Sensor fault
• Pump trip
• Low water level
• Emergency stop activated

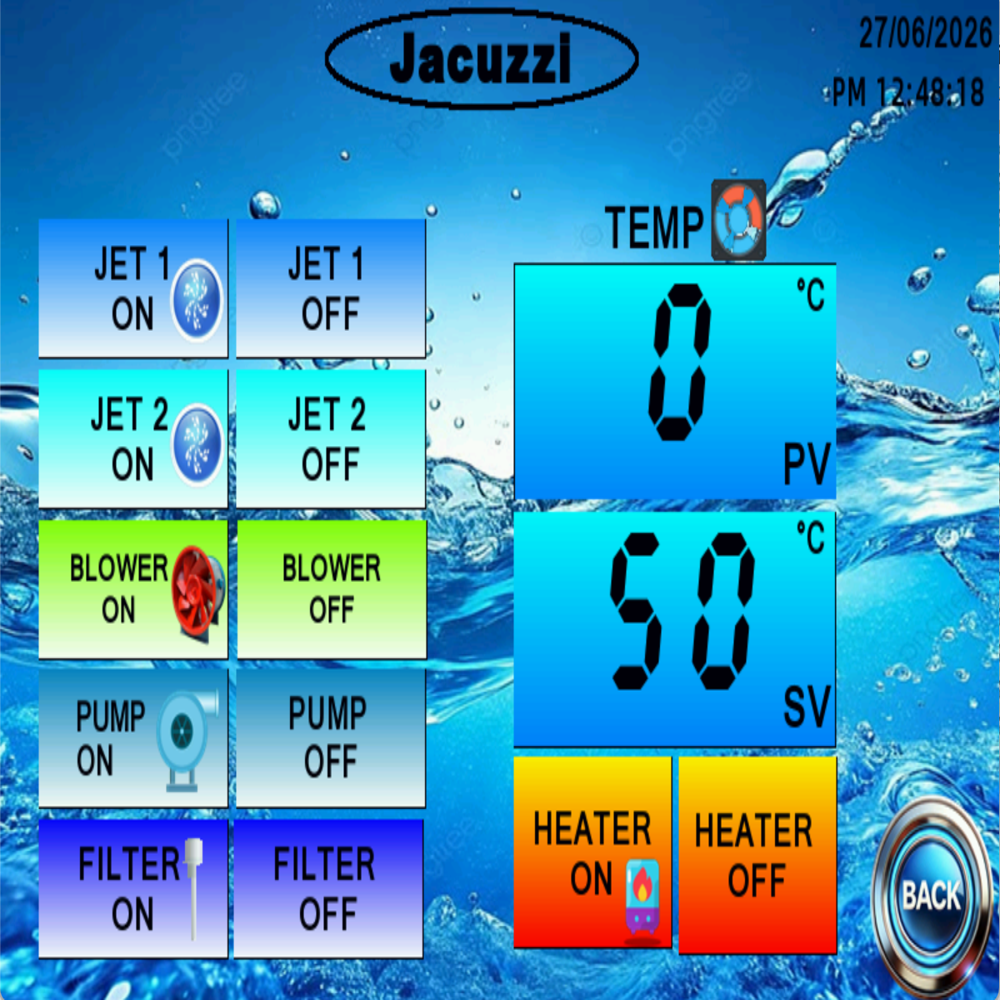

• Start/Stop Button
• Water Temperature Display
• System Status

• Set Temperature
• Actual Temperature
• Heater Status
