HMI Based Arm Cyclic Testing Machine

Name: HMI Based Arm Cyclic Testing Machine
Brand: SYSTEM CONTROLS
Price: 63000.0 INR
Availability: InStock

Price 63000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HMI Based Arm Cyclic Testing Machine Specification

Output Voltage
24 V DC (control circuits)

Input Current
230 V

Frequency
50 Hz

Operating Temperature
10C - 45C

Protection Level
IP54

Humidity
Up to 85% RH, Non-Condensing

Phase
Single Phase

Efficiency
Over 95% mechanical efficiency

Mounting Type
Floor Mounted

Rated Voltage
220 V AC

Main Material
Mild Steel Structure, Aluminum Fixtures

Usage
HMI Based Arm Cyclic Testing Machine

Processing Type
Automated, Programmable Cycle Testing

Condition
New

Function
Performs programmable cyclic motion on arms for durability and performance testing

Application
Chair Testing Machines

Product Type
HMI Based Arm Cyclic Testing Machine

Dimension (L*W*H)
1200 mm x 700 mm x 1200 mm

Power Mode
Electric, AC Supply

Voltage
220 V

Power Consumption
350 W

Battery Life
N/A (AC-powered equipment)

Accessories
Standard testing fixtures, user manual, cables

Cycle Range
1 - 99,999 cycles (programmable)

Finish
Powder-coated, anti-corrosive surface

Safety Features
Emergency stop, mechanical guards, overload protection

Display
7-Inch Color HMI Panel

Data Logging
Automatic cycle counting and test data storage

Test Speed
Adjustable, 10 - 60 cycles per minute

Noise Level
<65 dB (at peak load)

Control System
Touchscreen HMI based control with PLC integration

Connectivity
USB port for data export

Installation Support
Provided by manufacturer

Drive Mechanism
Servo motor driven with ball screw assembly

Weight
Approx. 220 kg

HMI Based Arm Cyclic Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About HMI Based Arm Cyclic Testing Machine

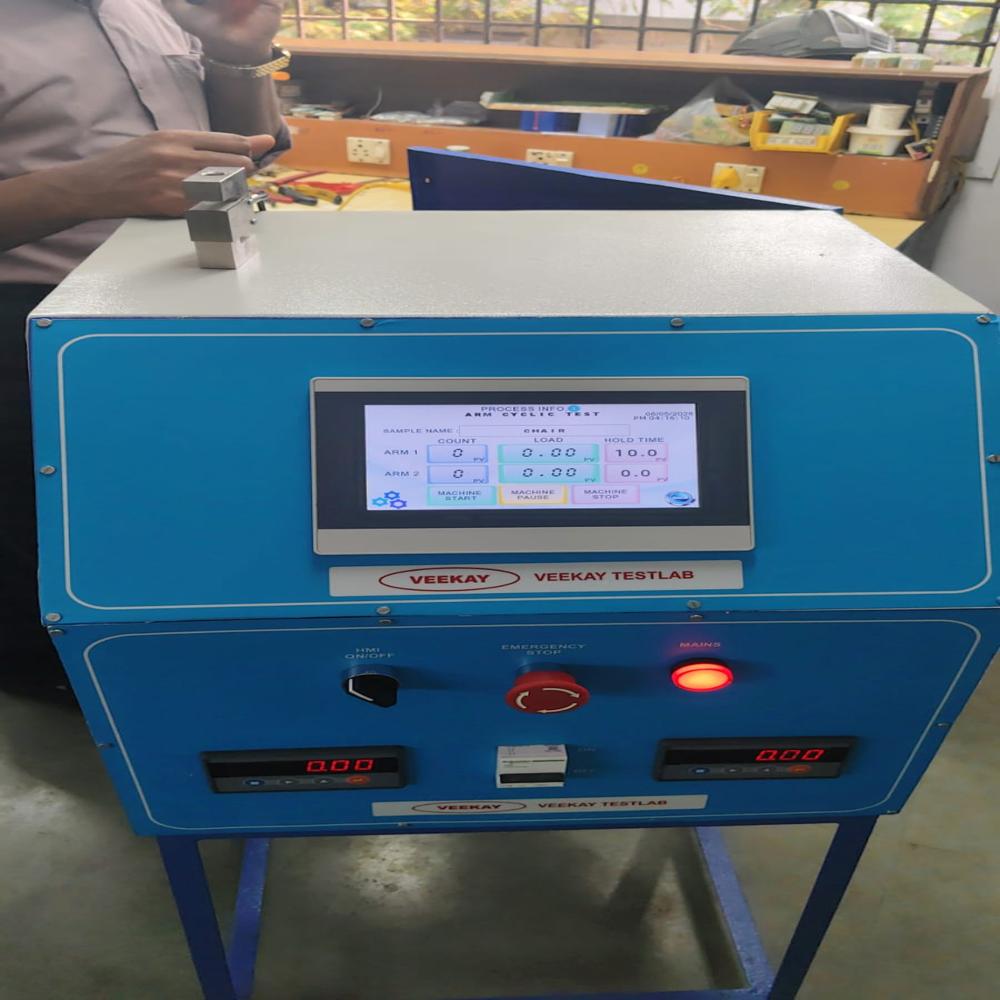

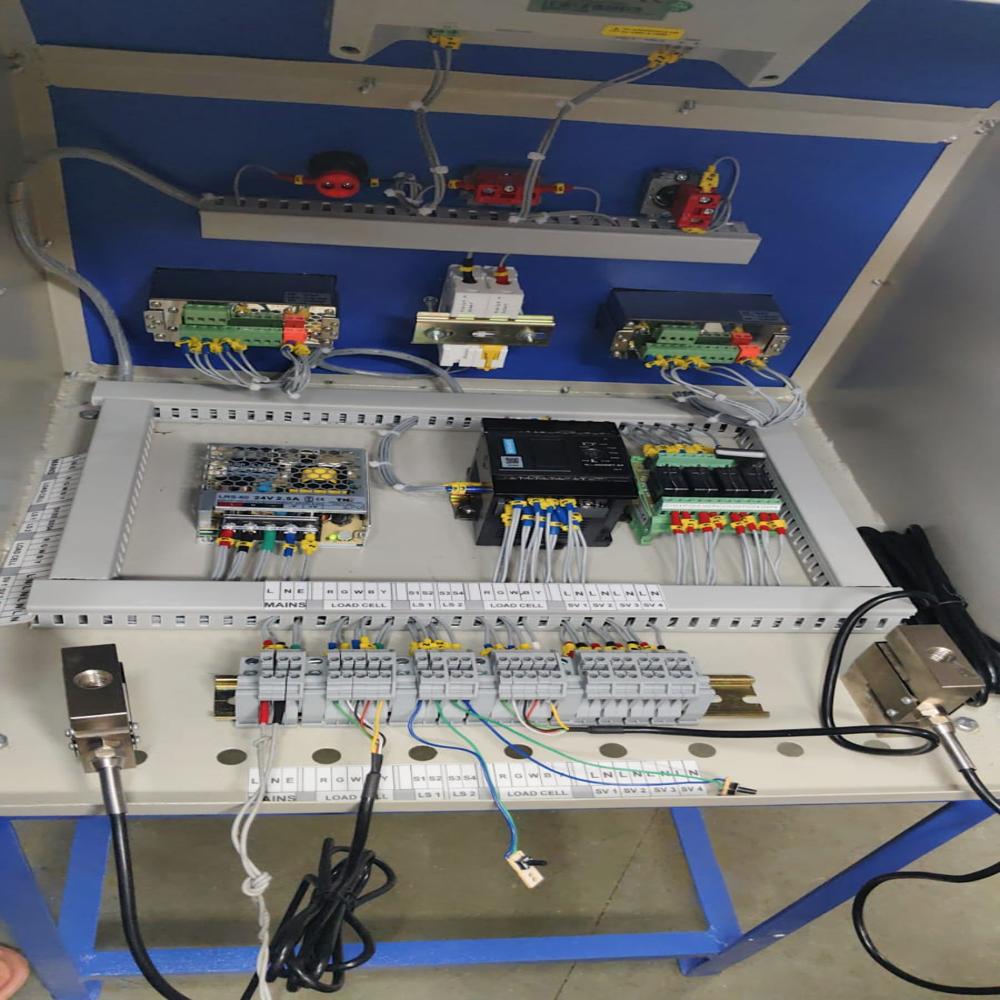

HMI-Based Arm Cyclic Testing Machine Panel

An Arm Cyclic Testing Machine is used to evaluate the durability of chair armrests by applying repeated loads to the arm

Main Functions of the Control Panel

The PLC + HMI panel allows the operator to:

Select left arm, right arm, or both arms
Set test load
Set hold time
Set return time
Set total cycle count
Monitor actual load
View current cycle number
Start, stop, and reset the test
View alarms and test completion messages

Touchscreen Control & PLC Integration

Operate seamlessly using the vibrant 7-inch HMI touchscreen panel, featuring full PLC integration for precise programmable control. Easily set cycle numbers, adjust test speeds, and monitor test status in real time for enhanced usability and productivity.

Comprehensive Safety & Reliability

The machine is engineered with built-in safety mechanisms, including an emergency stop button, mechanical guards, and overload protection to ensure both operator safety and product reliability during extensive cyclic testing procedures.

Efficient Data Management & Export

With automatic cycle counting, built-in test data storage, and convenient USB data export capability, users can effortlessly record, access, and transfer testing data for compliance, reporting, or further analysis. This supports streamlined documentation and traceability.

FAQ's of HMI Based Arm Cyclic Testing Machine:

Q: How does the HMI Based Arm Cyclic Testing Machine operate?

A: The machine functions by performing programmable cyclic movements on chair arms using a servo motor-driven ball screw assembly. Operation is controlled via a 7-inch color HMI touchscreen panel, with settings managed by an integrated PLC for precise and automated testing cycles.

Q: What is the process for setting up a test cycle on this machine?

A: Users can program the desired number of cycles (from 1 to 99,999) and select the appropriate test speed (10 - 60 cycles per minute) directly from the touchscreen. The system then automatically performs the test while logging cycles and storing data for review.

Q: When should I use this machine for chair testing applications?

A: This equipment is ideal whenever you need to assess the durability and performance of chair arms under repeated cyclic loads. It is particularly useful for manufacturers, quality control labs, or certification agencies testing furniture products to modern standards.

Q: Where can the test data be accessed and exported?

A: Test data is logged and stored within the machine's memory during operation. Data can be easily exported via the built-in USB port, allowing users to download test records for reporting, analysis, or compliance documentation.

Q: What safety features are included with the machine?

A: Safety is prioritized through an emergency stop button, mechanical guarding around moving parts, and overload protection. These features help protect both the operator and the equipment during all testing procedures.

Q: How does using this machine benefit my testing process?

A: Utilizing this machine streamlines cyclic testing with precise automation, accurate data logging, and easy parameter adjustments. It improves efficiency, ensures reliable results, supports safety compliance, and reduces manual labor and error.
